This is a post I had originally written in April 2019. I post it here now with some modifications for clarity.

This post will have us walk through a simple random walk on a finite graph. The purpose of this blog post is to illuminate what each step looks like (as a matrix multiplication) and to develop intuition.

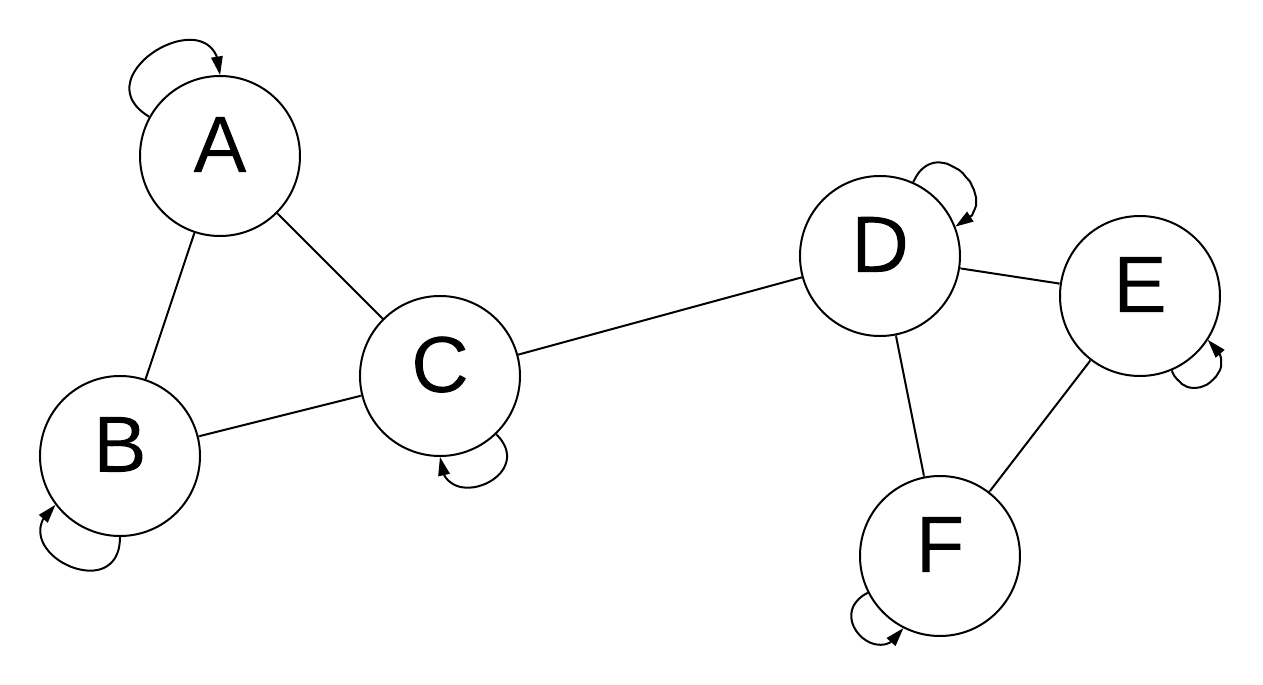

We will take a random walk on the following graph. The little swirls around the nodes pointing to themselves denote that a random walker might stay at the same node when taking the next step.

center-img

The transition matrix for a random walk on the above simple graph is:

\[\begin{equation*} P = \begin{bmatrix} \frac{1}{3} & \frac{1}{3} & \frac{1}{3} & 0 & 0 & 0 \\ \frac{1}{3} & \frac{1}{3} & \frac{1}{3} & 0 & 0 & 0 \\ \frac{1}{4} & \frac{1}{4} & \frac{1}{4} & \frac{1}{4} & 0 & 0 \\ 0 & 0 & \frac{1}{4} & \frac{1}{4} & \frac{1}{4} & \frac{1}{4} \\ 0 & 0 & 0 & \frac{1}{3} & \frac{1}{3} & \frac{1}{3} \\ 0 & 0 & 0 & \frac{1}{3} & \frac{1}{3} & \frac{1}{3} \\ \end{bmatrix} \end{equation*}\]

Say we start at node A. When we start, we know we are at node A with a probability of 1. Our position vector would be:

\[\begin{equation*} X_{0} = \begin{bmatrix} 1 & 0 & 0 & 0 & 0 & 0 \end{bmatrix} \end{equation*}\]
A step at a time

To take a Markov Step we simply multiply our position vector $X_0$ by the transition matrix from the right. The resulting vector $X_1$ gives us the probabilities of where the random walker will be at after taking 1 step:

\[\begin{equation*} X_{0} P = \begin{bmatrix} 1 & 0 & 0 & 0 & 0 & 0 \end{bmatrix} \begin{bmatrix} \frac{1}{3} & \frac{1}{3} & \frac{1}{4} & 0 & 0 & 0 \\ \frac{1}{3} & \frac{1}{3} & \frac{1}{4} & 0 & 0 & 0 \\ \frac{1}{3} & \frac{1}{3} & \frac{1}{4} & \frac{1}{4} & 0 & 0 \\ 0 & 0 & \frac{1}{4} & \frac{1}{4} & \frac{1}{3} & \frac{1}{3} \\ 0 & 0 & 0 & \frac{1}{4} & \frac{1}{3} & \frac{1}{3} \\ 0 & 0 & 0 & \frac{1}{4} & \frac{1}{3} & \frac{1}{3} \end{bmatrix} = \begin{bmatrix} \frac{1}{3} & \frac{1}{3} & \frac{1}{3} & 0 & 0 & 0 \end{bmatrix} = X_{1} \end{equation*}\]

To know the probabilities of where the random walker is going to be at time $t=2$ we repeat the above procedure by multiplying $X_1$ by $P$ from the right:

\[\begin{equation*} X_{1} P = \begin{bmatrix} \frac{1}{3} & \frac{1}{3} & \frac{1}{3} & 0 & 0 & 0 \end{bmatrix} \begin{bmatrix} \frac{1}{3} & \frac{1}{3} & \frac{1}{4} & 0 & 0 & 0 \\ \frac{1}{3} & \frac{1}{3} & \frac{1}{4} & 0 & 0 & 0 \\ \frac{1}{3} & \frac{1}{3} & \frac{1}{4} & \frac{1}{4} & 0 & 0 \\ 0 & 0 & \frac{1}{4} & \frac{1}{4} & \frac{1}{3} & \frac{1}{3} \\ 0 & 0 & 0 & \frac{1}{4} & \frac{1}{3} & \frac{1}{3} \\ 0 & 0 & 0 & \frac{1}{4} & \frac{1}{3} & \frac{1}{3} \\ \end{bmatrix} = \begin{bmatrix} 0.3056 & 0.3056 & 0.3056 & 0.0833 & 0 & 0 \end{bmatrix} = X_{2} \end{equation*}\]
A sanity Check

This is a good time to pause and inspect that the numbers make sense. We have claimed that $X_t$ contains the vector of probabilities that the random walker is at a node. Representing each ‘hop’ or time-step as a $\rightarrow$, let’s see all the different nodes we can arrive to in two time-steps if we start at node $A$.

\[\begin{aligned} \begin{array}{c|c|c|c|c|} \hline & \text {Ways we can arrive at A:} & \text { Ways we can arrive at B: } & \text {Ways we can arrive at C:} & \text {Ways we can arrive at D:}\\ \hline & A \rightarrow A \rightarrow A \text{ w.p } \frac{1}{3} \times \frac{1}{3} & A \rightarrow A \rightarrow B \text{ w.p } \frac{1}{3} \times \frac{1}{3} & A \rightarrow A \rightarrow C \text{ w.p } \frac{1}{3} \times \frac{1}{3} & A \rightarrow C \rightarrow D \text{ w.p } \frac{1}{3} \times \frac{1}{4}\\ & A \rightarrow B \rightarrow A \text{ w.p } \frac{1}{3} \times \frac{1}{3} & A \rightarrow B \rightarrow B \text{ w.p } \frac{1}{3} \times \frac{1}{3} & A \rightarrow B \rightarrow C \text{ w.p } \frac{1}{3} \times \frac{1}{3}\\ & A \rightarrow C \rightarrow A \text{ w.p } \frac{1}{3} \times \frac{1}{4} & A \rightarrow C \rightarrow B \text{ w.p } \frac{1}{3} \times \frac{1}{4} & A \rightarrow C \rightarrow C \text{ w.p } \frac{1}{3} \times \frac{1}{4} \\ \hline \text{Total }\Pr: & 0.3056 & 0.3056 & 0.3056 & 0.0833 \\ \hline \end{array} \end{aligned}\]

This also makes sense intuitively. A,B and C are more “densely” connected, so if I start in that cluster I should probably end up somewhere in the cluster.

Notice from the above steps that if we wished to know the probabilities of where the random walker is after an arbitrary $t$ steps, that can be simply be written as:

\[X_t = X_{t-1} \cdot P = X_{t-2} \cdot P \cdot P = \cdots = X_0 P^t\]
The stationary distribution emerges

The above equation leads us to now believe that the matrix $P^t$ is an object of interest. At this point we will compute it for our above transition matrix for $t=100$.

The following is a snippet of code written in Julia:

using LinearAlgebra

# Adjacency matrix
A = [1 1 1 0 0 0;
     1 1 1 0 0 0;
     1 1 1 1 0 0;
     0 0 1 1 1 1;
     0 0 0 1 1 1;
     0 0 0 1 1 1];

# Diagonal matrix
D = diagm(vec(sum(A, dims=2)))

# This is the transition matrix
P = inv(D) * A

# Take a 100 steps
t = 100;
P^t

and this gives us the following output:

\[\begin{equation*} P^{100} = \begin{bmatrix} 0.15 & 0.15 & 0.20 & 0.20 & 0.15 & 0.15 \\ 0.15 & 0.15 & 0.20 & 0.20 & 0.15 & 0.15 \\ 0.15 & 0.15 & 0.20 & 0.20 & 0.15 & 0.15 \\ 0.15 & 0.15 & 0.20 & 0.20 & 0.15 & 0.15 \\ 0.15 & 0.15 & 0.20 & 0.20 & 0.15 & 0.15 \\ 0.15 & 0.15 & 0.20 & 0.20 & 0.15 & 0.15 \\ \end{bmatrix} \end{equation*}\]

Each row of this matrix is the same, and it is the stationary distribution $\pi$. We talk more about stationary distributions in this post.

It may sound obvious in retrospect but we think it is worth emphasizing that at no point in the above computation (of $P^t$!) did we use $X_0$ or any other position vector. The above matrix also tells us that no matter where our random walker started her walk, we would have ended up with the same vector $X_t = \pi$ - this is because $X_0$ would have one 1 element somewhere and the rest would be zeros, and the $X_0 \cdot P^t$ multiplication would only pluck out a row from $P^t$, and all the rows are the same. What if $X_0$ was a probability vector without all the probability mass concentrated at one node? The magical thing (which the reader should check) is that $X_t$ would still be $\pi$.
